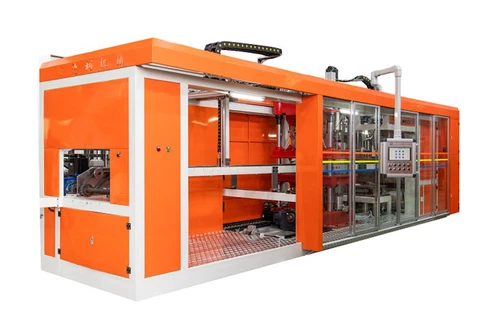

Multi-station Plastic Thermoforming Machine
Nantong Boxu Technology Co., Ltd. We are a leading manufacturer and 20 years experience in thermoforming industry .We have focused on the research and development , production, sales and service of multi-station plastic thermoforming machines, thick film blister machine, thermoforming production line，plastic cup thermoforming machines, PP/PS sheet extruders, molds, plasticmill and other customized product.The company with advanced technology, perfect management system, excellent quality products to serve our customers.
Why Choose Us
Broad Market
With more than 20 years of thermoforming designing and engineering, Boxu Technology machines has been exported into over 30 countries, such as Indonesia,south Korea，Thailand,Vietnam, Russia, Brazil,Chile,Mexico, Saudi Arabia, etc.
Equipment use
Our Widely used in electronics, hardware, toys, food, medicine, daily necessities, stationery, advertising, tableware, home appliances, medical equipment, auto accessories, etc.
Our Certificates
We get a lot of invention patents and utility model patents for our products, and our machines have passed CE / ISO 9001:2000/ TUV and other certificates to prove our strength.
Company Services
Innovative technology • Superior features • Heavy duty design • Excellent quality • World-class performance • Customized options • Support and service.
Types of Multi-Station Plastic Thermoforming Machine
Single-Stage Thermoforming Machines
This type of machine forms the plastic in a single process, making it suitable for simple shapes and lower volume production.
Double-Stage Thermoforming Machines
Double-stage machines perform two distinct processes—forming and trimming—either in succession or simultaneously. This option is ideal for complex designs requiring precision.
In-Line Thermoforming Machines
In-line machines integrate forming with other processes, such as cutting and stacking, providing a seamless production workflow. This setup is advantageous for high-volume operations.
Custom Thermoforming Solutions
Some manufacturers offer customized machines tailored to specific production needs. These solutions may involve unique features or configurations to enhance efficiency and output.
Main Technical Parameters
|
Max Forming area |
720*760mm |
|
Material |
PET,APET,PP,PS,PVC,ABS |
|
Material thickness |
0.2-1.8mm |
|
Forming height |
0-80mm |
|
Production speed |
200-600times/hour |
|
Mould-up times |
1 or 2 times(free to install) |
|
Mould-up move |
Electromotion |
|
Eject-die |
Shake to mould-down |
|
Overall power consumption |
25kw/hr |
|
Vacuum pump power |
4.0 KW/150m³ |
|
Servo motor |
3kw |
|
Power |
380V 50HZ |
|
Air consumption |
6.5kg/cm 1000-1500Liter /min |
|
Chiller power |
3HP |
|
Overall diameter |
(L)9200*(W)2850*(H)2660mm |
|
Weight |
9200kg |
Specifications
Machine Size and Weight
The overall dimensions and weight are important as they affect the machine's capacity and the area it occupies on the production floor.
Materials Supported
Multi-station plastic thermoforming machines can handle different types of plastic materials, such as PVC, PP, PS, PET, etc. Each type of material has its own characteristics, and the machines are designed to adapt to them accordingly.
Production Speed
Multi-station plastic thermoforming machines can retrofit with various speed capacities. So, the machines may have a speed measured in cycles per hour or units produced per time.
Power Consumption
Multi-station plastic thermoforming machines consume power depending on their production capacity and the types of equipment used. Power consumption can be measured in kilowatts (kW) or kilowatt-hours (kWh).
Operating Environment Requirements
Multi-station plastic thermoforming machines work in specific environments, such as indoor or outdoor, temperature range, humidity, etc. This helps ensure the machines' stable operation and prolong their service life.
Application of Multi-Station Plastic Thermoforming Machine
Agricultural packaging
Agricultural multi station thermoforming packaging such as clamshells, trays, and blisters for fruits, vegetables, seeds, and gardening tools is produced using multi station thermoforming machines.
Aviation & automotive interior parts
Multi station thermoforming machines can be used to make interior components used in the automotive and aviation industries, including dashboards, door panels, interior trim, and automotive signage.
Electronics packaging
Electronics packaging such as protective trays, clamshells, and vacuum formed covers for fragile electronic components and devices is produced using multi station thermoforming machines.
Cosmetic and pharmaceutical containers
Multi station thermoforming machines are used in the cosmetics and personal care industry to produce containers, jars, and trays for makeup, skincare, and hair care products.
Signage and display components
Multi station thermoforming machines create the signage and display components used in retail and advertising, including LED light boxes, promotional displays, and architectural elements.
Custom parts fabrication
Multi station thermoforming machines can be used to fabricate custom parts for a variety of industries, including aerospace, marine, and machinery. Custom parts are made of different types of plastic materials to suit specific functional requirements.
Technological process
Carrying material(cylinder drives the chain to work)---Heating(cylinder drives the electric furnace to lift in order to make a proof)---Pulling( cylinder drives the chain)----Lifting the lower die, falling the upper die(cylinder drives)-Vacuum forming(vacuum pump air admission )---Cooling(gas drives the spray gun to work, electric machinery drives the air blowing)----Drawing of patterns(gas drives)---Pulling-cutting---Stacking on the line.
Packaging & Shipping
Delivery Time
Within 75 days after confirming order
Payment Terms
30% for deposit, the rest 70% shall be paid by T/T before delivery.
As one of the leading multi-station plastic thermoforming machine manufacturers and suppliers in China, we warmly welcome you to buy bulk multi-station plastic thermoforming machine in stock here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.
